SRB Support Types
Mounting options
SRB bearings and housings may be mounted in a variety of support units according to the application and loading constraints. A number of variants are available as standard types. Custom designed support unit types are available on request.

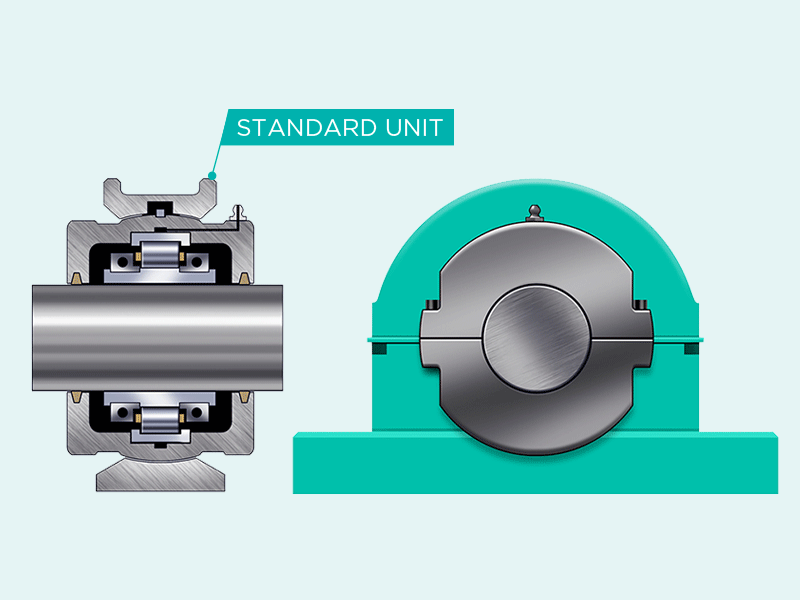

Standard Unit
This is by far the most popular method for mounting SRB units. These supports are manufactured from high strength, grade 250 (BS EN1561 :1997) cast iron. This, combined with the robust design, provides a stable, rigid base, allowing the split bearing fitted to give optimum performance.

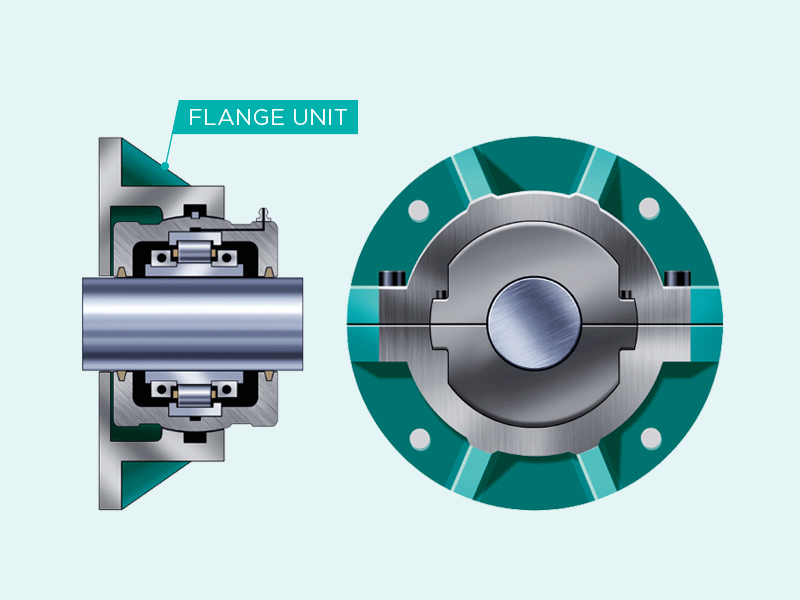

Flange Units
These units offer a simple means of mounting split roller bearings against a vertical or horizontal face or bulkhead. The swivel cartridge counteracts misalignment of the shaft and mounting axes and provides a high quality seal and concentric alignment to the shaft at all times.

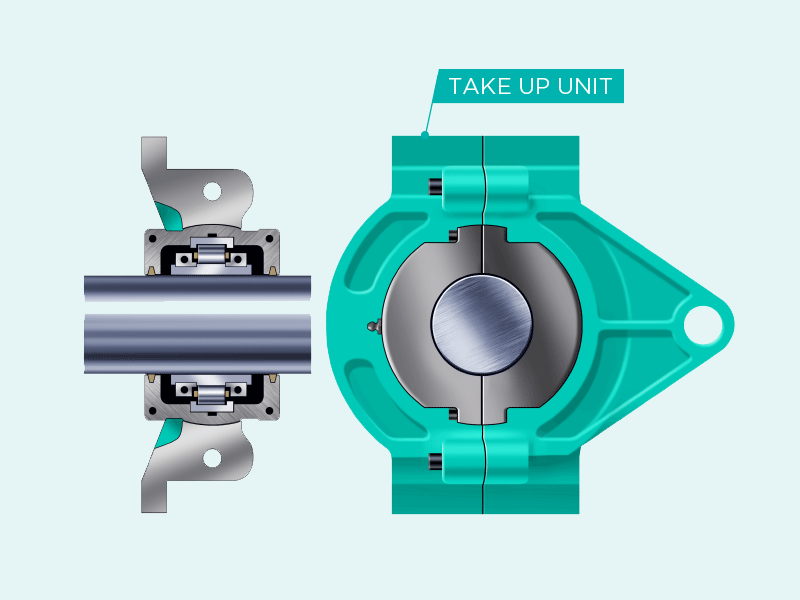

Take-Up Units
These sliding units can be used to effectively tension conveyor and elevator systems.

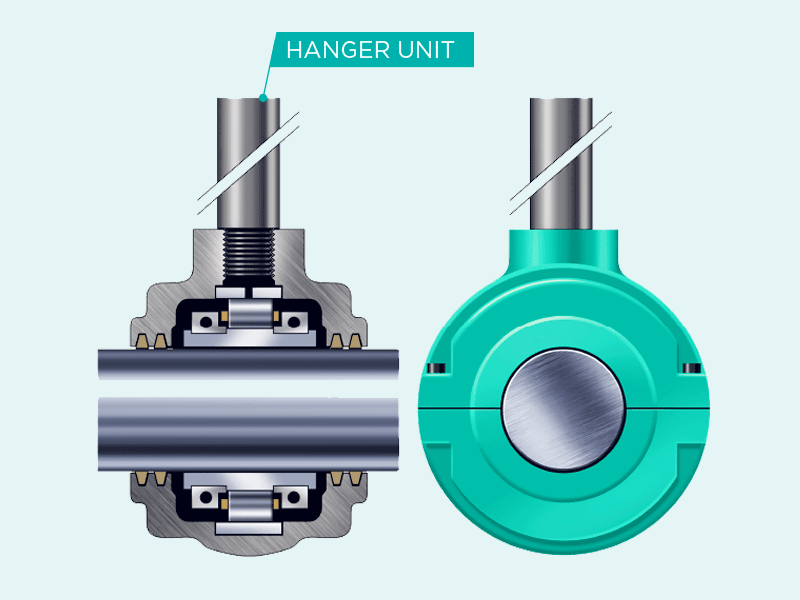

Hanger Units
A compact unit commonly used for conveyors or similar equipment.
